How to Read a Camera Lens Spec Sheet: Aperture, MTF, and More (2026)

A 24mm lens sees a wide slice of the world; a 200mm lens compresses distance and pulls distant subjects close. On a full-frame sensor, 50mm approximates human-eye perspective. On an APS-C sensor, you multiply by a crop factor — typically 1.5x for Nikon and Sony, 1.6x for Canon — so a 35mm lens behaves more like a 52-56mm equivalent. For primes, the spec sheet lists a single focal length: 35mm, 85mm, 100mm. For zooms, you get a range: 24-70mm, 70-200mm, 100-500mm. A wider range sounds more versatile, but optical compromises increase with zoom ratio. A 2x zoom (24-70mm) is far easier to design to a high standard than a 5x zoom (100-500mm). When comparing two zoom lenses, a tighter range at the same price usually means better optical quality at each end. Practical framing rules of thumb: 16-35mm suits architecture, interiors, and landscapes. 50-85mm is the natural home of portraits and street photography. 100-200mm covers sports, wildlife, and compressed environmental portraits. Beyond 300mm, you are in specialist telephoto territory — birding, motorsport, astronomy. Match focal length to your subject first; everything else on the spec sheet is secondary.

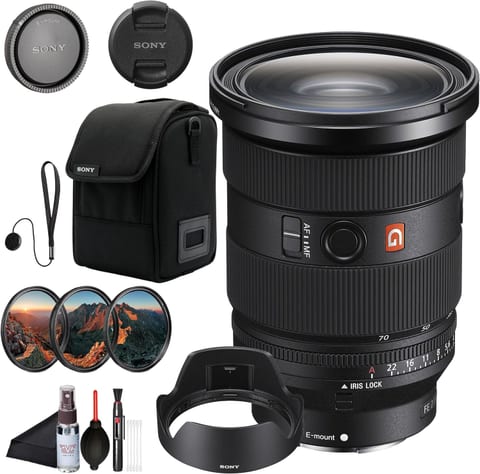

Going from f/4 to f/2.8 doubles the light entering the sensor — one full stop. Going from f/2.8 to f/1.4 doubles it again. In practical terms, f/1.8 on a 50mm lens lets you shoot in candlelit rooms without flash and isolate a subject against a creamy, blurred background. f/4 on the same focal length requires either brighter conditions, a higher ISO (introducing noise), or a slower shutter speed (risking motion blur). For zoom lenses, watch for variable versus constant aperture. A lens listed as 18-55mm f/3.5-5.6 starts at f/3.5 at the wide end but narrows to f/5.6 at 55mm — a meaningful loss of light at the focal length you often need most. A constant f/2.8 zoom like the Sony FE 24-70mm f/2.8 GM maintains its maximum aperture across the entire range, which matters enormously for event and wedding photographers who cannot control lighting. The trade-off is size, weight, and price — constant-aperture zooms are heavier and significantly more expensive than their variable counterparts. For portrait and low-light work, prioritize maximum aperture. For landscape and studio work where you shoot at f/8 anyway, a slower lens is a perfectly rational choice.

The horizontal axis represents distance from the center of the image to the edge (from 0mm at center to 20mm or more at the corner, depending on sensor size). The vertical axis shows the MTF value from 0 to 1, where 1 is perfect reproduction and 0 is total loss of contrast. Two line pairs are typically shown: a coarse pattern (10 lines per millimeter, measuring contrast) and a fine pattern (30 or 40 lines per millimeter, measuring resolution). High values on both lines across the full width of the chart indicate a sharp, contrasty lens. Lines that stay above 0.8 across the frame are excellent; lines that drop sharply toward the corners signal edge softness. Two additional lines on most MTF charts represent sagittal and tangential measurements — essentially sharpness in radial versus perpendicular directions. When these two lines track closely together, the lens renders fine detail cleanly without directional smearing (called astigmatism). A wide gap between them at the edges is a warning sign for lenses used on flat subjects like documents, architecture, or product photography. Always compare manufacturer MTF charts with caution: they are typically measured at the optimal aperture (often f/5.6 or f/8), not wide open. An independent lab chart measured at maximum aperture will tell you far more about real-world wide-open performance. When evaluating lenses, look at both.

A 50mm lens with an MFD of 0.45m lets you get reasonably close to small subjects. A 100mm macro lens with an MFD of 0.31m gets you much closer in absolute terms and far closer in relative terms. If you shoot food, products, insects, or flowers, MFD is a critical spec — not an afterthought. Magnification ratio describes how large the subject appears on the sensor relative to its real-world size. A 1:1 (or 1.0x) magnification ratio means a 24mm subject fills the full 24mm width of a full-frame sensor — true macro. A 1:4 (0.25x) ratio is common on standard lenses and is fine for environmental close-ups but will not satisfy dedicated macro work. Lenses marketed as macro but rated only 1:2 (0.5x) are technically half-macro; they are useful but not the same as a true 1:1 lens. If close-up capability matters to your work, check both numbers together. A long MFD combined with a low magnification ratio is a lens that simply cannot get close. A short MFD with a high magnification ratio is the combination you want.

Some manufacturers describe it simply as weather-resistant or dust- and splash-resistant without providing an IP rating. Others specify gasket locations or confirm compatibility with weather-sealed camera bodies. No lens spec sheet should be read as a guarantee of waterproofing unless an explicit IPX rating is stated. Weather sealing reduces — it does not eliminate — the risk of moisture and dust ingress. Pair a weather-sealed lens with a weather-sealed body; one without the other leaves a gap at the mount. Lens coatings affect both optical performance and durability. Fluorine or fluorite coatings on the front element repel water, oil, and fingerprints, making cleaning faster and reducing the risk of permanent smearing. Anti-reflective coatings — Canon's ASC, Nikon's Arneo, Sony's Nano AR — reduce internal flare and ghosting, which matters most when shooting into light sources. These are not marketing terms to skip; they have measurable effects on contrast in backlit scenes. Aperture blade count affects the shape of out-of-focus highlights (bokeh). More blades — typically 9 or more — produce rounder, smoother bokeh balls. Fewer blades (5 or 7) create more angular, geometric shapes. Neither is objectively better, but portrait and wedding photographers generally prefer the smoother rendering of higher blade counts. Finally, internal versus external zoom and focus mechanisms matter for practical use. Internal focusing lenses do not change length during operation, which matters for filter use (polarizers rotate with external focus barrels) and for gimbal balance. If you are mounting a lens on a stabilizer like the Zhiyun Crane 4S, an internally focusing lens stays balanced throughout its focus range.

These two filters alone eliminate most of the market. Next, set your aperture floor. If you shoot events indoors, anything slower than f/2.8 is a compromise you will feel constantly. If you shoot landscapes on a tripod, f/4 or even f/5.6 is perfectly adequate. Be honest about your actual shooting conditions, not your aspirational ones. With focal length and aperture locked, use MTF charts to compare the remaining candidates on sharpness and corner performance. For flat-field work (product, architecture, documents), pay close attention to the sagittal-tangential gap at the edges. For portraiture, center sharpness and wide-open rendering matter more than corner performance — your subject is rarely in the corner of the frame. Check minimum focus distance if you shoot anything smaller than a human head. Confirm weather sealing if you work outdoors in unpredictable conditions. Look at aperture blade count if smooth bokeh is part of your visual style. Finally, weigh size and weight against your actual shooting habits. A fast, sharp prime may outperform a zoom on every optical metric, but if you leave it at home because it is too heavy, the slower zoom you actually carry wins every time. Specs on paper only matter when the lens is on the camera. When you are ready to move from research to purchase, our photography category page covers the lenses and cameras that consistently rank at the top of their class — visit /best/photography to see the current shortlist.
